Automatic tracking liquid filling machine

Short Description:

Automatic tracking filling machineSuitable for various bottle types, filling equipment developed for viscous and fluid liquids, widely used in daily chemicals, cosmetics, and other industries.

1.Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part, please note if there is high-strength corrosive filling liquid)

2. Applicable products: round bottle, flat bottle, square bottle, etc.

3.Application industry: widely used in cosmetics, daily chemical, petrochemical, and other industries.

4. Application examples: hand sanitizer filling, laundry detergent filling, honey filling, etc.

1 3 4 6 22 33


Product Detail

Product Tags

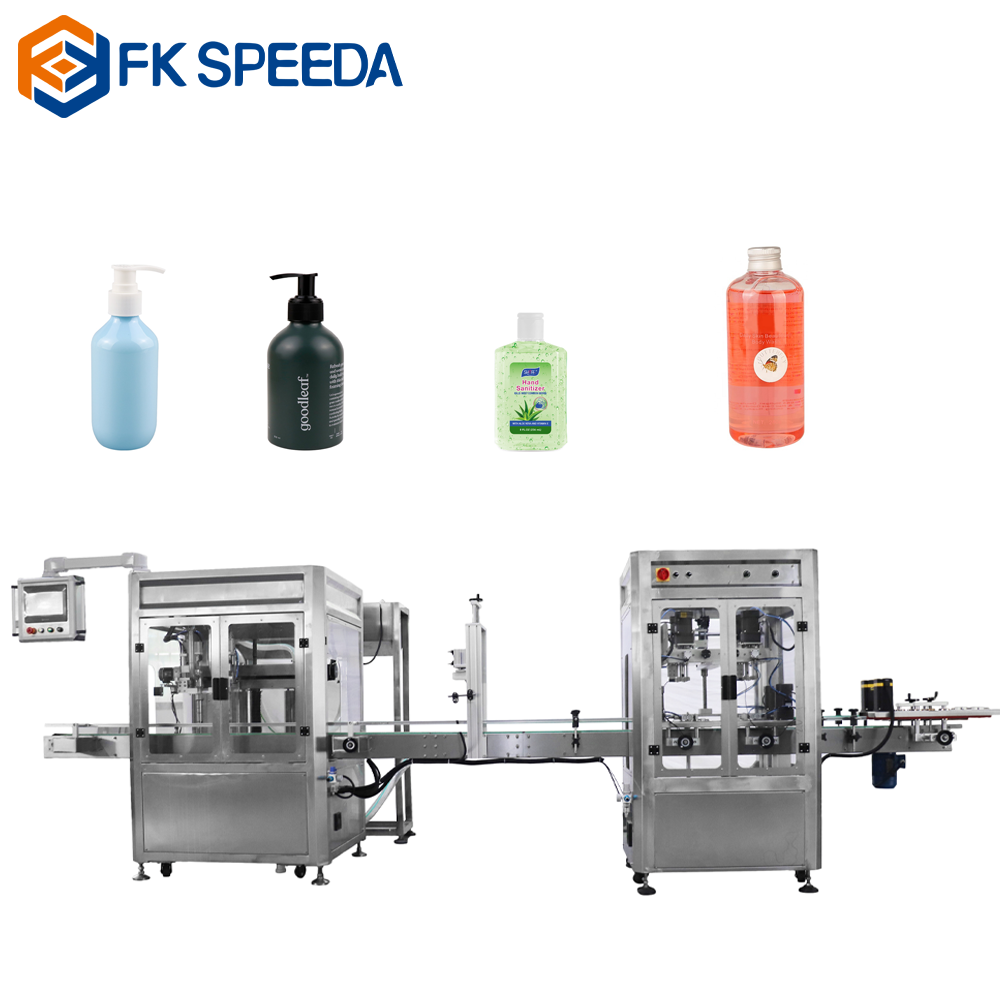

Automatic tracking liquid filling machine

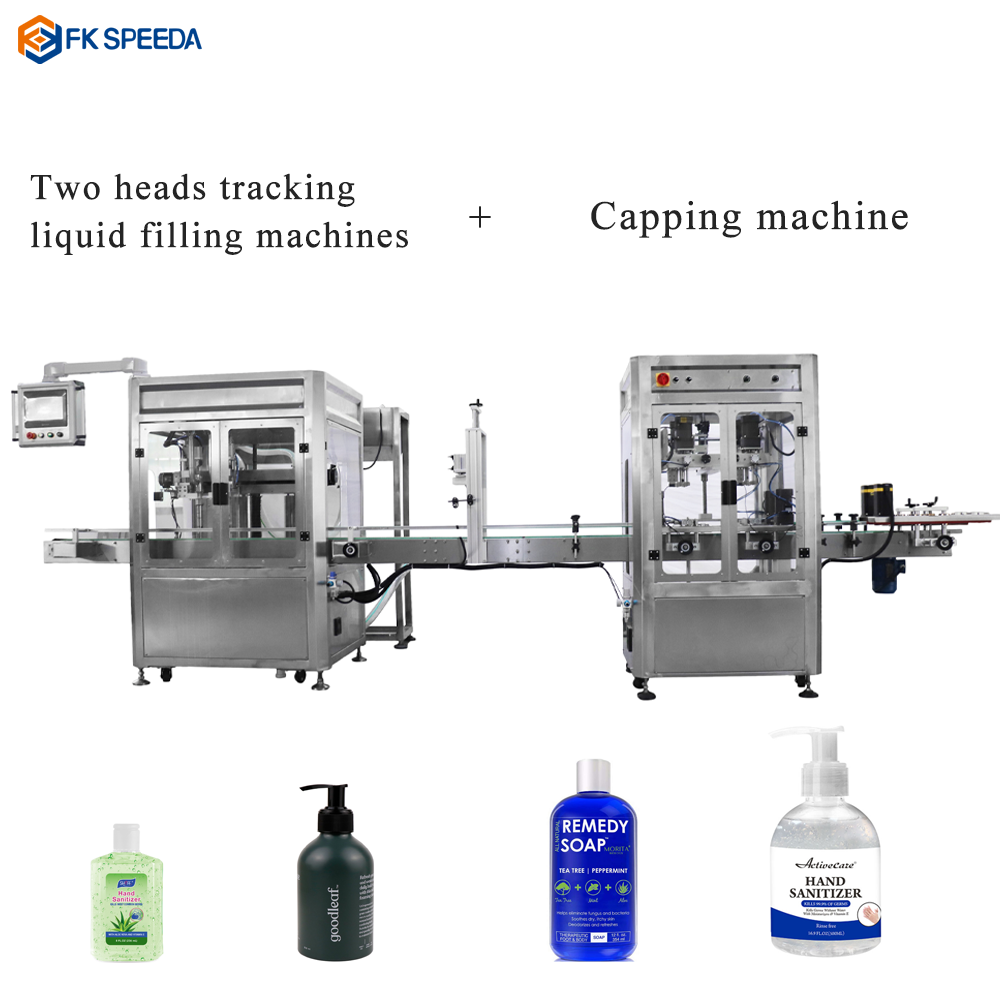

2头跟踪式灌装4

Machine Parameter

Applicable filling diameter (mm) ≥20mm
Applicable filling range (ml) 500ml~5000ml
Filling accuracy (ml) 1%
Filling speed (pcs/h) 1800-2000pcs/h (2L)
Weight (kg) about 360kg
Frequency (HZ) 50HZ
Voltage (V)  AC220V
Air pressure (MPa) 0.4-0.6MPa
Power (W) 6.48KW
Equipment dimensions (mm) 5325mm × 1829mm × 1048mm

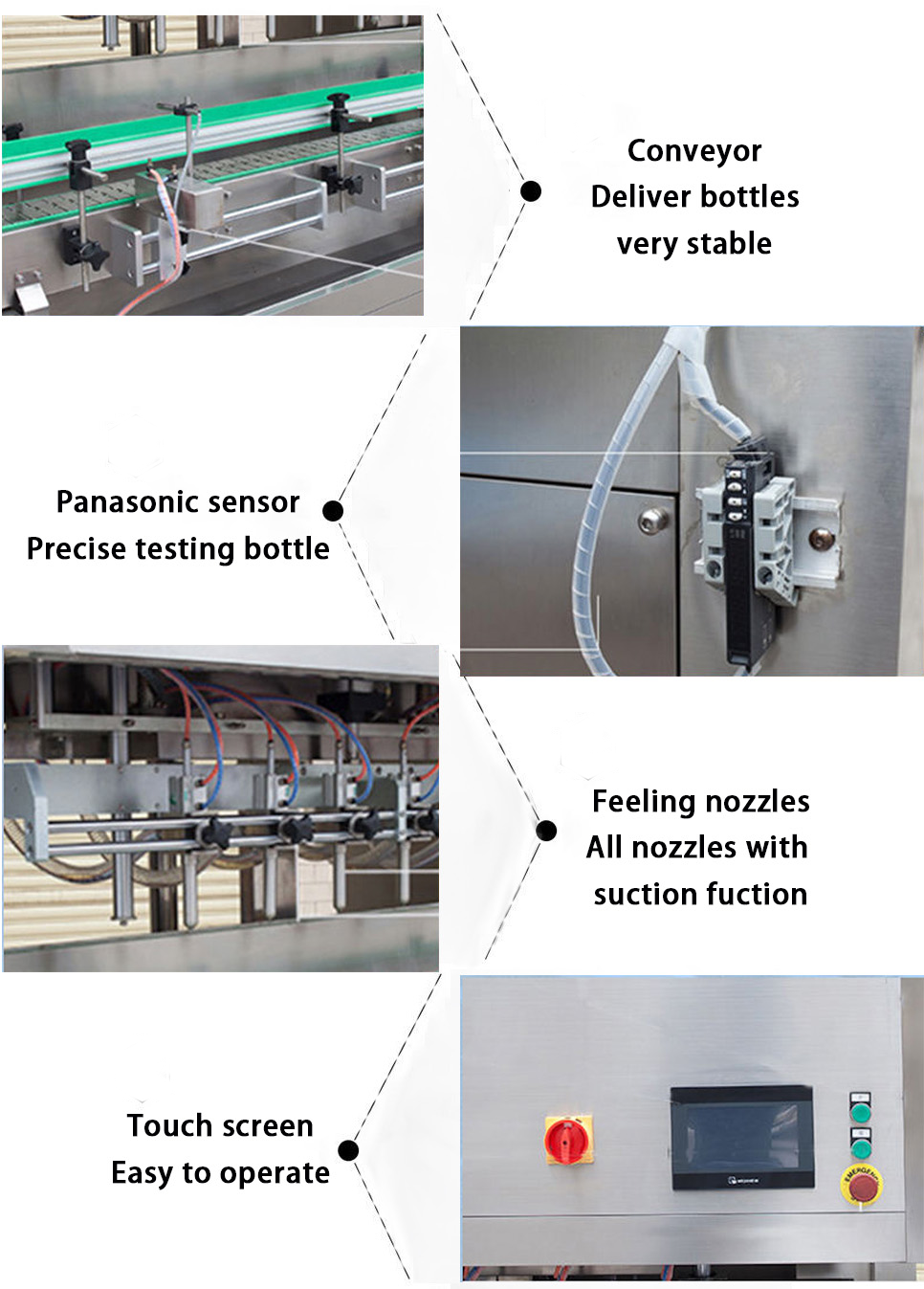

Machine detail description

9

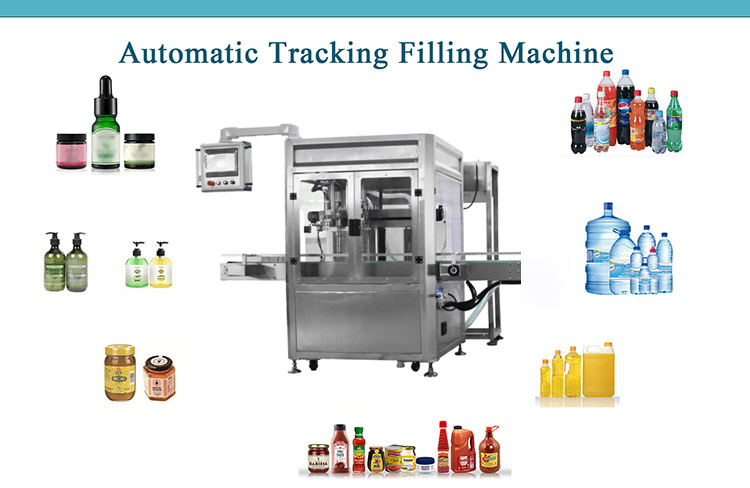

Product Application

7
8

Functional Characteristics

Simple operation, convenient debugging, easy to use;

Filling system, lifting system and tracking system are all controlled by servo motor, with high precision; guardrail is controlled by stepper motor.

It is not necessary to use tools to replace products of different specifications in the whole process. The size of the product is controlled and debugged by the touch screen, and each product only needs to debug the formula parameters for the first time. After the parameters are saved, the subsequent production of this product is required. There will be no need for machine debugging. When changing products, you only need to take out the specifications of the required products on the touch screen formula. After taking them out, the equipment will be automatically converted and debugged to the required product specifications, and it can be produced without manual debugging and can be saved for 10 group recipe;

The filling head is controlled separately, and the two filling systems are separate;

The filling speed and filling volume can be directly input on the display screen, and the filling can be done without adjusting the mechanical parts;

It adopts three-speed filling or two-speed filling, and the three-stage speed and filling volume can be adjusted to prevent the liquid from splashing out after full;

Intelligent control, automatic photoelectric tracking, no bottle filling;

There is a clamping mechanism at the back end of the machine conveying; it can be connected to the back end for the transition of the back end conveying line;

Fast and widely used in industries;

The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.

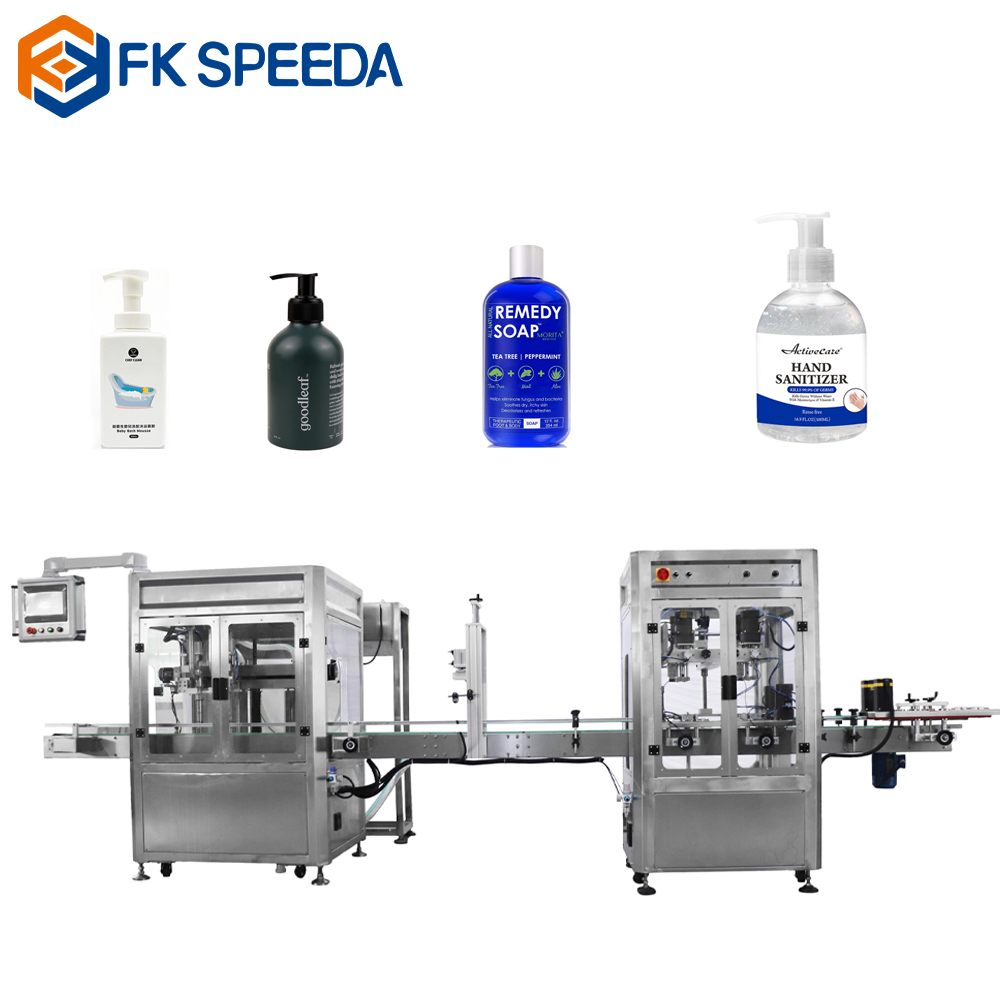

2头跟踪式灌装2
tracking filling machine
