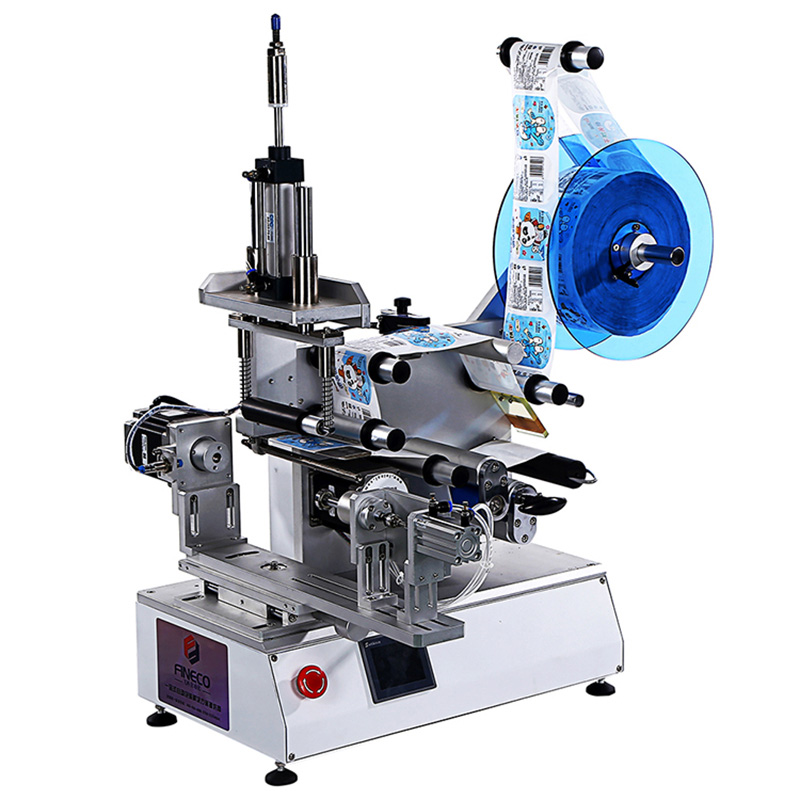

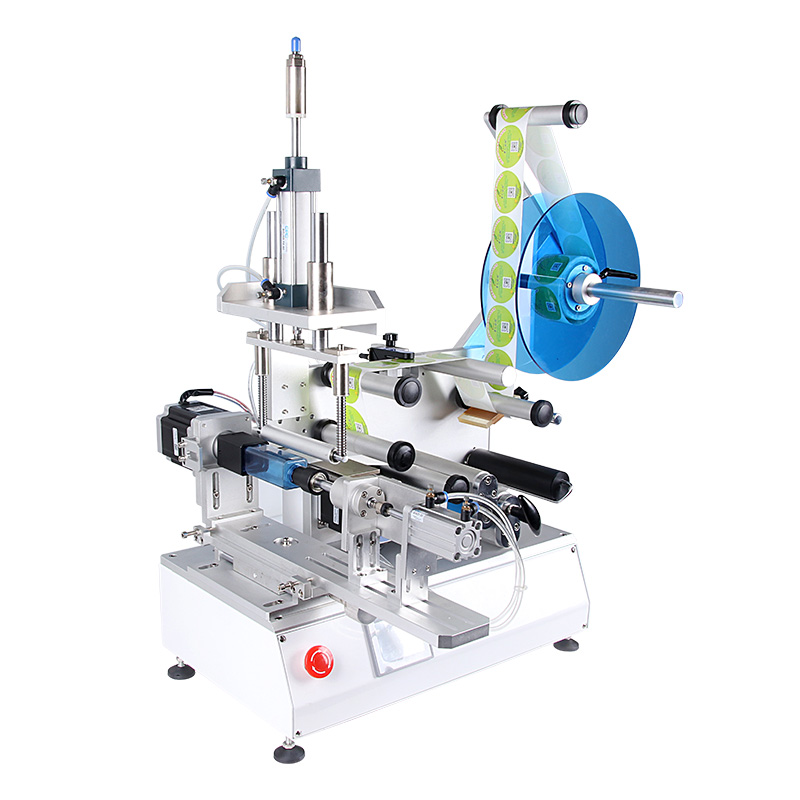

FK616 Semi Automatic 360° Rolling Labeling Machine

Short Description:

① FK616 is suitable for all kinds of specifications of Hexagon bottle, square, round, flat and curved products labeling, such as packaging boxes, round bottles, cosmetic flat bottles, curved boards.

② FK616 can achieve full coverage labeling, partial accurate labeling, double label and three label labeling, the front and back labeling of the product, the use of double labeling function, you can adjust the distance between the two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.

Send email to us

Product Detail

Product Tags

FK616 Semi Automatic 360° Rolling Labeling Machine

You can set video sharpness in the lower right corner of the video

Machine Description

③ FK616 has additional functions to increase:configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.

④ FK616 1.Adjust method is simple and only needs to move the height of the pressure wheel. 2.Adjust the mold position of the pressing product and the position of the sensor. The Adjust process is less than 10 minutes.The labeling accuracy is high, and the error is difficult to be seen by the naked eye. It is the good choice for products with less mass production.

⑤ FK616 floor space about 0.56 stere.

⑥ Machine Support Customization.

Work Process

Press the switch after the product is placed in the designated position.

The machine will clamp the product and pull-out the label, the wheel on the top of machine will press the label onto the product and then roll until the labeling is finished.

Release the product and the machine will automatic restore.

A labeling process is completed.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Label Specification:

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Structures:

Parameter	Data
Label Specification	adhesive sticker, transparent or opaque
Labeling Tolerance	±lmm
Capacity(pcs/niin)	100 ~300
Suit bottle size(mni)	010 ~ 030;Can be customized
Suit label size(mm)	L： 20-290； W(H)： 20-130
Machine Sizc(LWH)	^8007201050 (mm)
Pack Size(LWH)	^20107501730 (mm)
Voltage	220V/50(60)HZ;Can be customized
Power	700W
N.W (KG)	Q185
G.W(KG)	Q356
Label Roll	ID: 076mm;OD:<26Omm

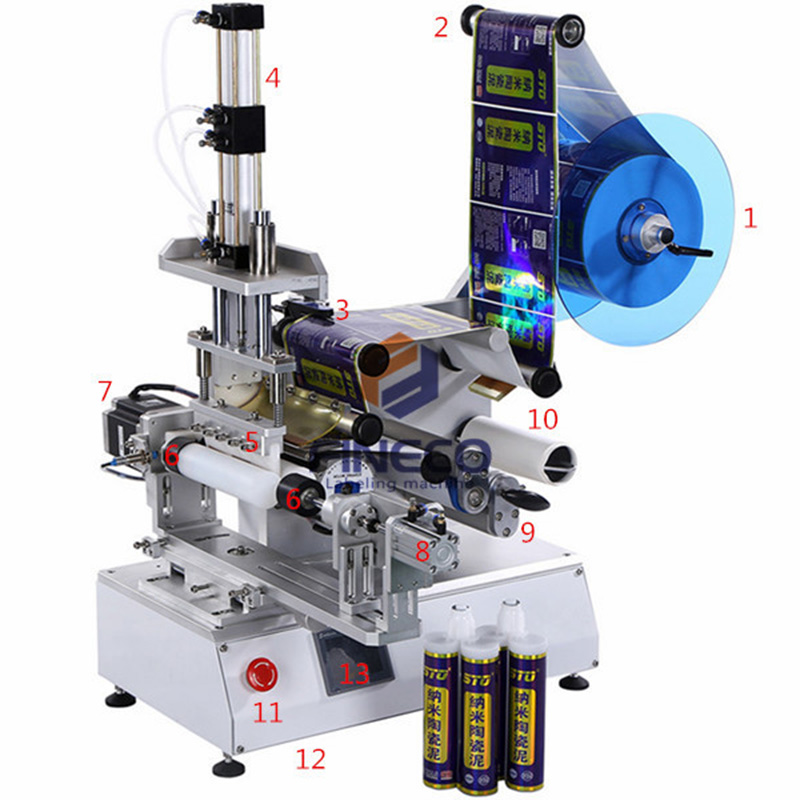

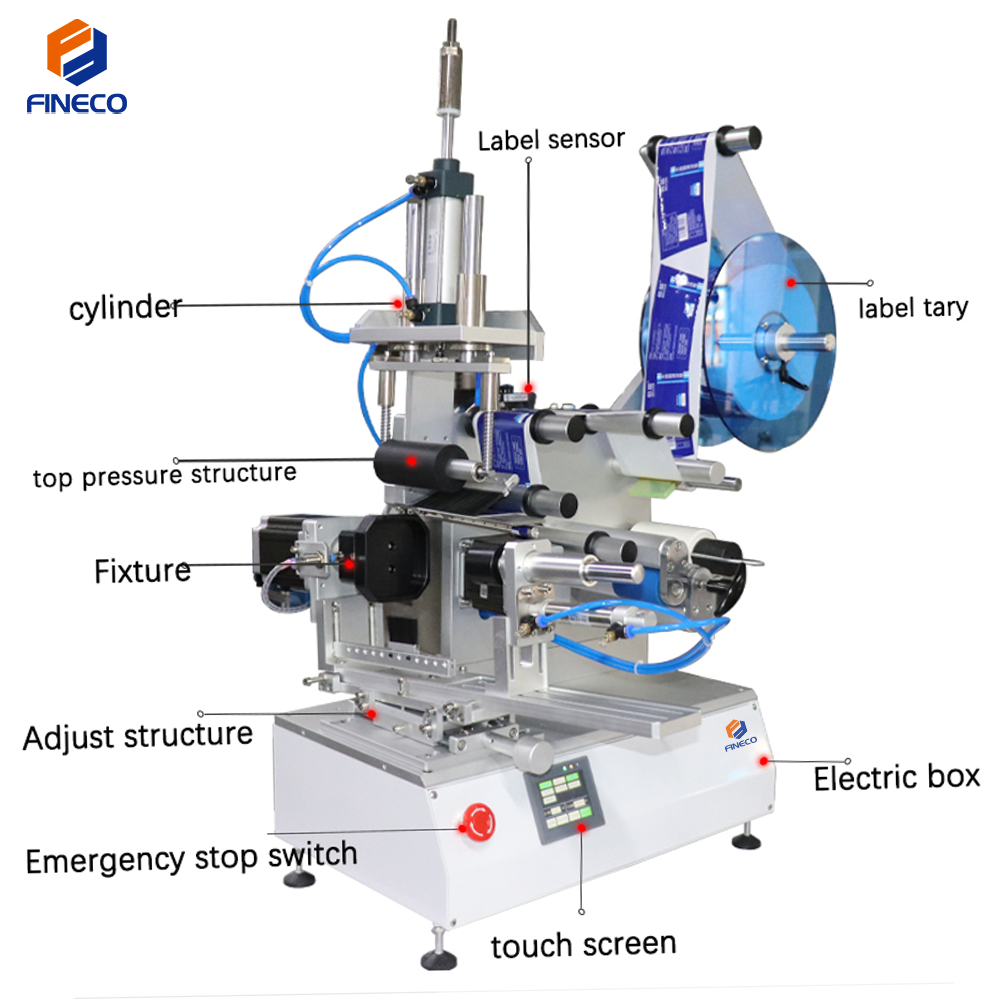

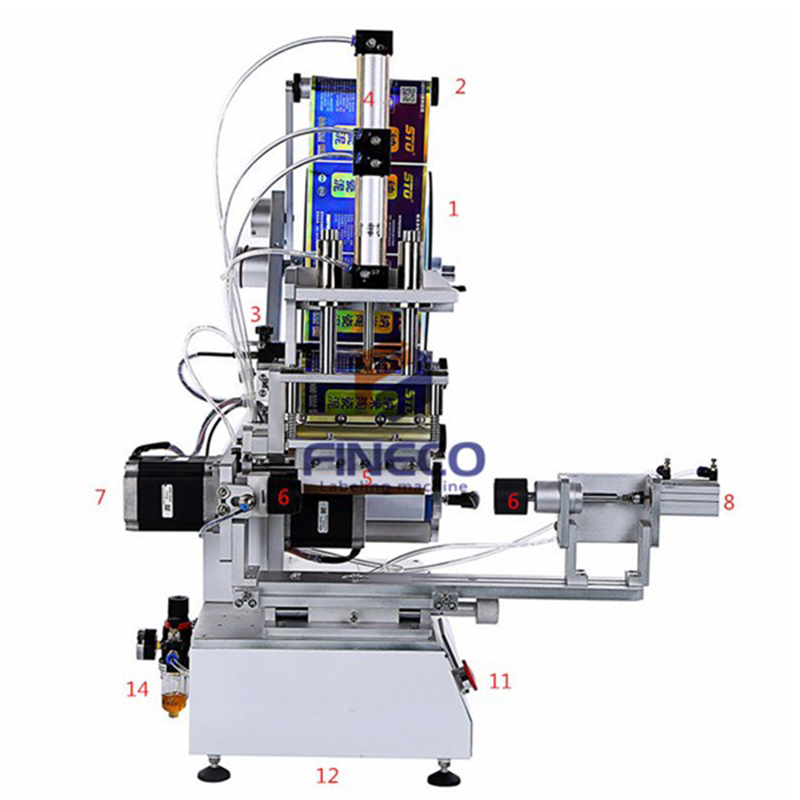

No.	Structure	Function
1	Label Tray	Place the label roll
2	Rollers	Wind the label roll
3	Label Sensor	Detect label
4	Strengthening Cylinder	Drive the strengthening device
5	Strengthening Device	Smooth label while labeling and make it stick tight
6	Product Fixture	Custom-made,fix product from top and bottom while labeling
7	Fixture Motor	Drive the fixture to rotate while labeling
8	Fixture Cylinder	Drive the fixture
9	Traction Device	Driven by traction motor to draw the label
10	Release Paper Recycling	Recycle the release paper
11	Emergency Stop	Stop the machine if it runs wrong
12	Electric Box	Place electronic configurations
13	Touch Screen	Operation and setting parameters
14	Air Circuit Filter	Filter water and impurities

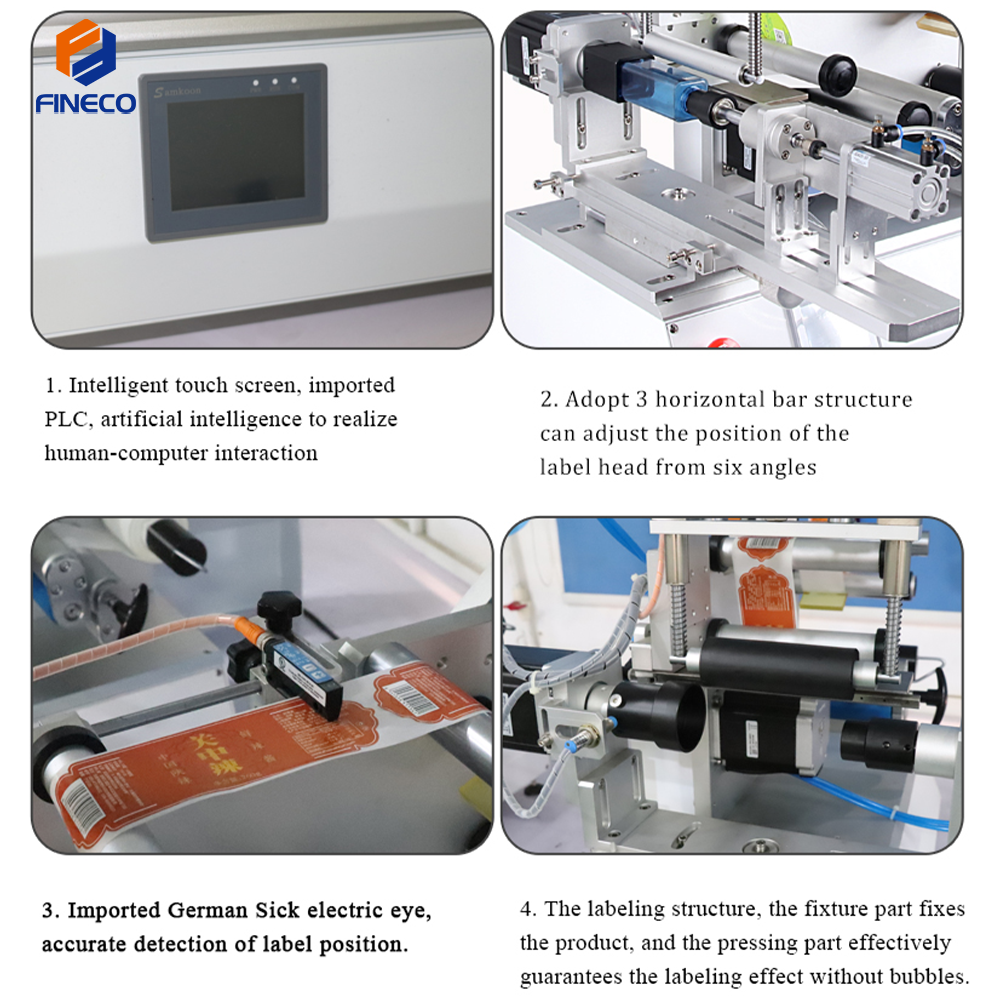

Features:

1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.

FAQ:

Q: Are you the factory?

A: We are Manufacturer located in Dongguan,China.Specialized in labeling machine and packaging industry for more than 10 years,have thousands of customer cases,welcome for factory inspection.

Q: How to make sure your labeling quality is good?

A: We are using strong and durable mechanical frame and premium electronic parts such as Panasonic,Datasensor,SICK...to make sure stable labeling performance.What’s more,our labelers approved CE and ISO 9001 certification and have patent certificates.Besides,Fineco was awarded Chinese“New High-Tech Enterprise” in 2017.

Q: How many machines your factory have?

A: We produce standard and custom-made adhesive labeling machine.By automation grade,there are semi automatic labelers and automatic labeler;By product shape,there are round products labelers,square products labelers,irregular products labelers,and so on.Show us your product, labeling solution will be provided accordingly.

Q: What’s your quality assurance terms?

Fineco strictly implement responsibility of the post,

1)When you confirm order,the design department will send the final design for your confirmation before production.

2)The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.

3)After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.

4)Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.

5)After customer’s video checking/factory inspection,sales will arrange the delivery.

6)If customer have problem during application,Sales will ask the After-sales Dept to solve it together.

Q: Confidentiality Principle

A: We will keep All Our Clients’ Design,Logo,and Sample on our archives,and never show to the similar clients.

Q: Is there any installation direction after we received the machine?

A: Generally you can apply the labeler directly once receive it,because we have adjust it well with your sample or similar products.Besides,instruction manual and videos will be provided.

Q: What label material does your machine use ?

A: Self-adhesive sticker.

Q: Which kind of machine can meet my labeling requirement?

A: Pls supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.

Q: Is there any insurance to guarantee that I will get the right machine I pay for?

A: We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.

Q: How could I get the spares of machines?

A: Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
