FK606 Desktop High Speed Round/Taper Bottle Labeller
Short Description:

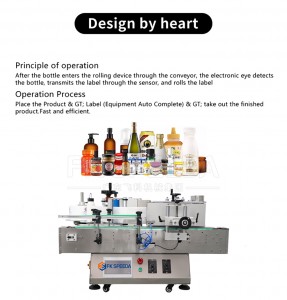

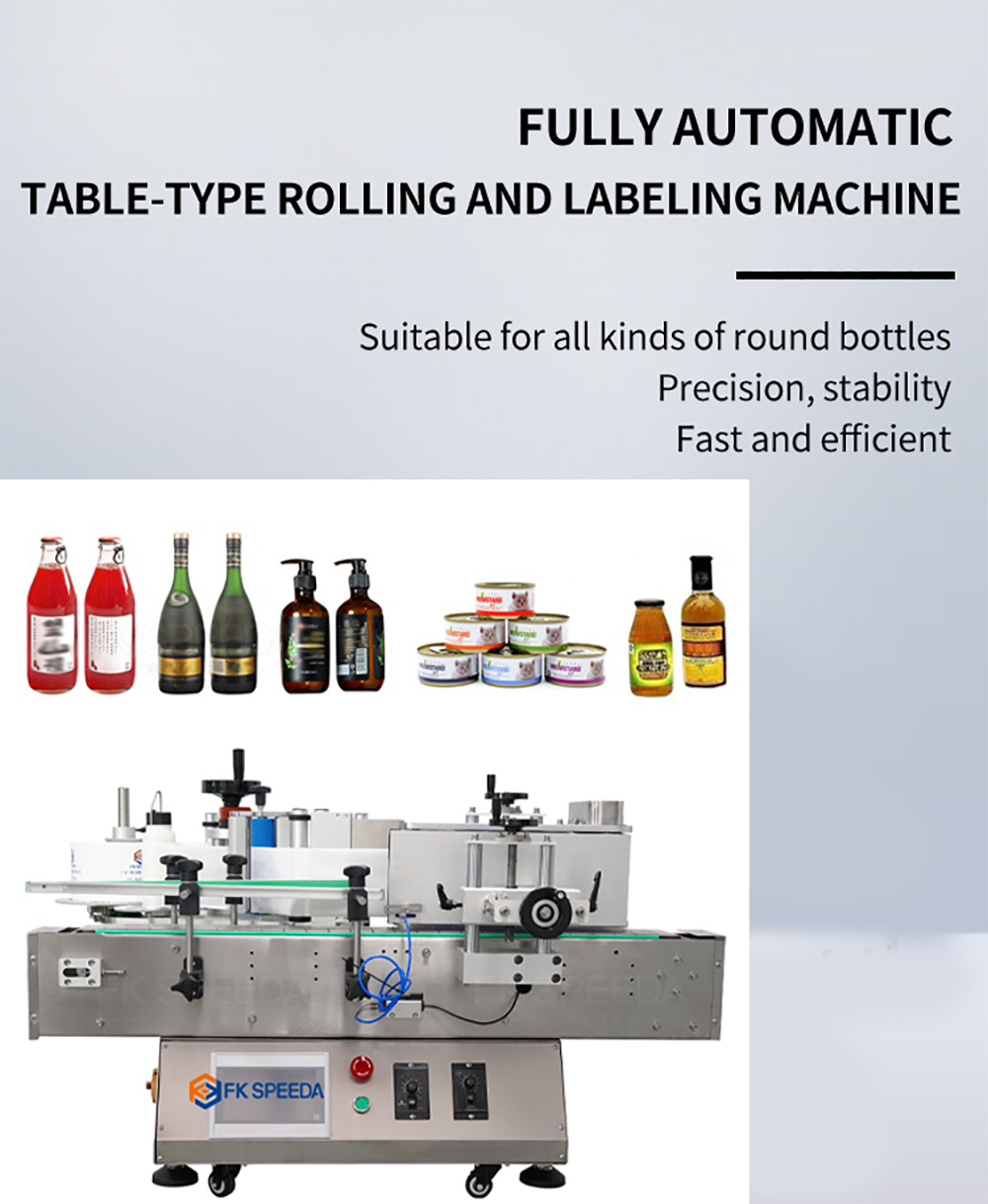

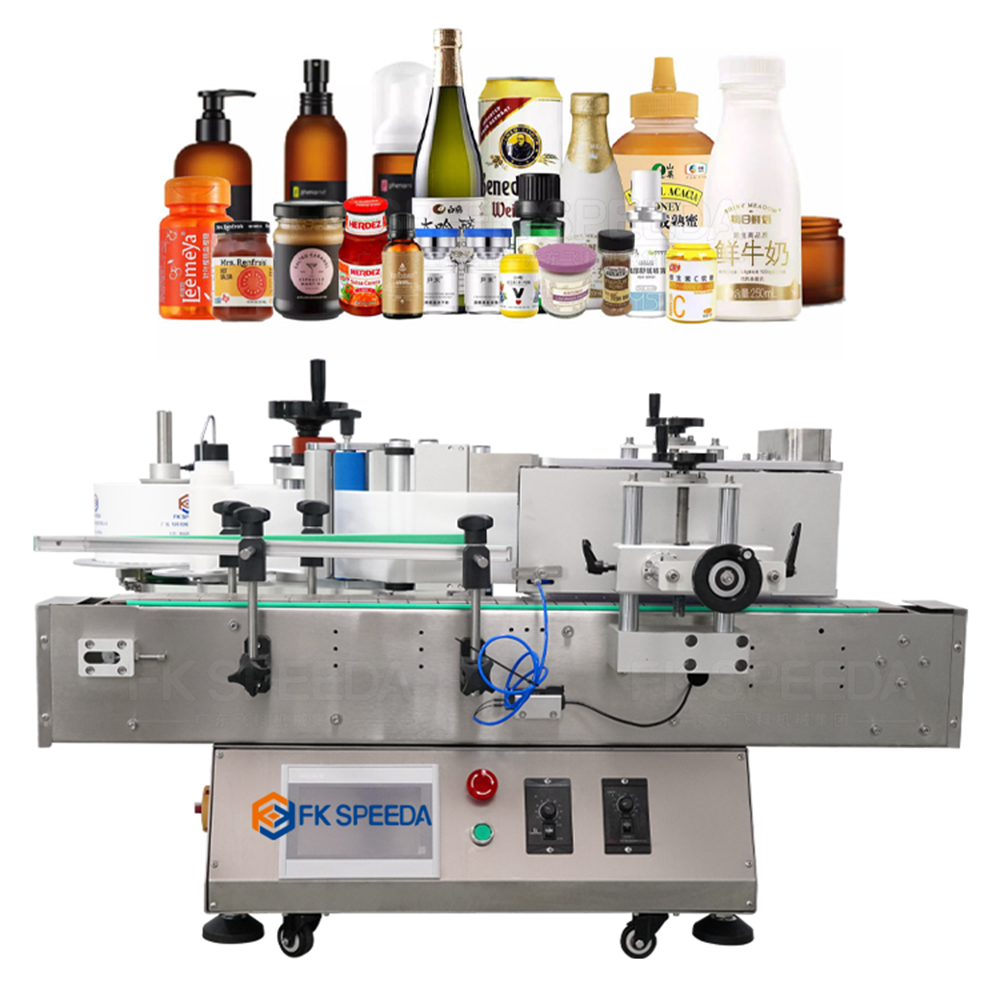

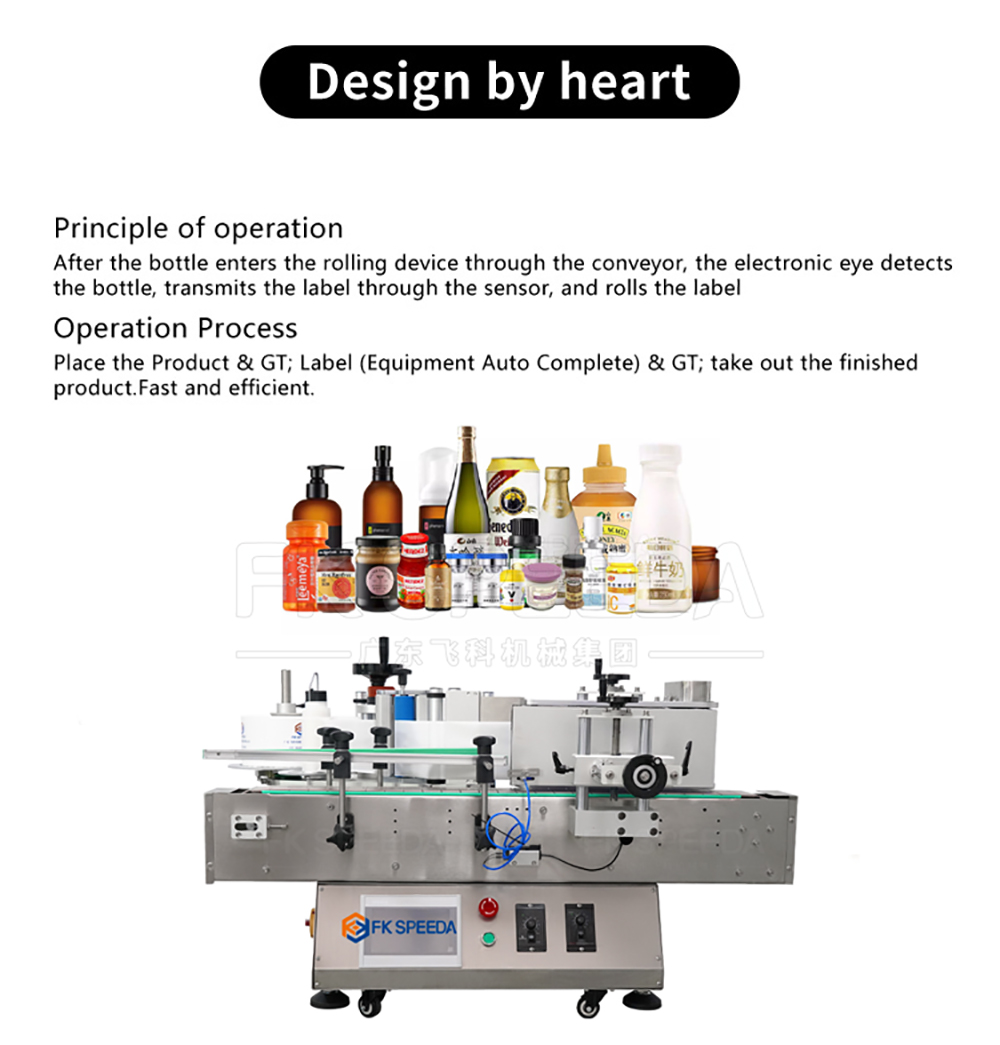

FK606 Desktop High Speed Round/Taper Bottle Labeling machine is suitable for taper and round bottle, can, bucket, container labeling.
Simple operation, High speed, Machines take up very little space, can be easily carry and moving at any time.
Operation, Just click automatic mode button on the touch screen, and then put the products on the conveyor one by one, then you don’t have to do else labeling will be completed.
Can be fixed to labeling the label in a specific position of the bottle, can achieve full coverage of the product labeling, Compared with FK606, it is faster but lacks the positioning labeling and product front and back labeling function . Widely used in packaging, food, beverage, daily chemical, medicine, cosmetics and other industries.
Partially applicable products:
FK812 Automatic card/bag/carton labeling machine
You can set video sharpness in the lower right corner of the video

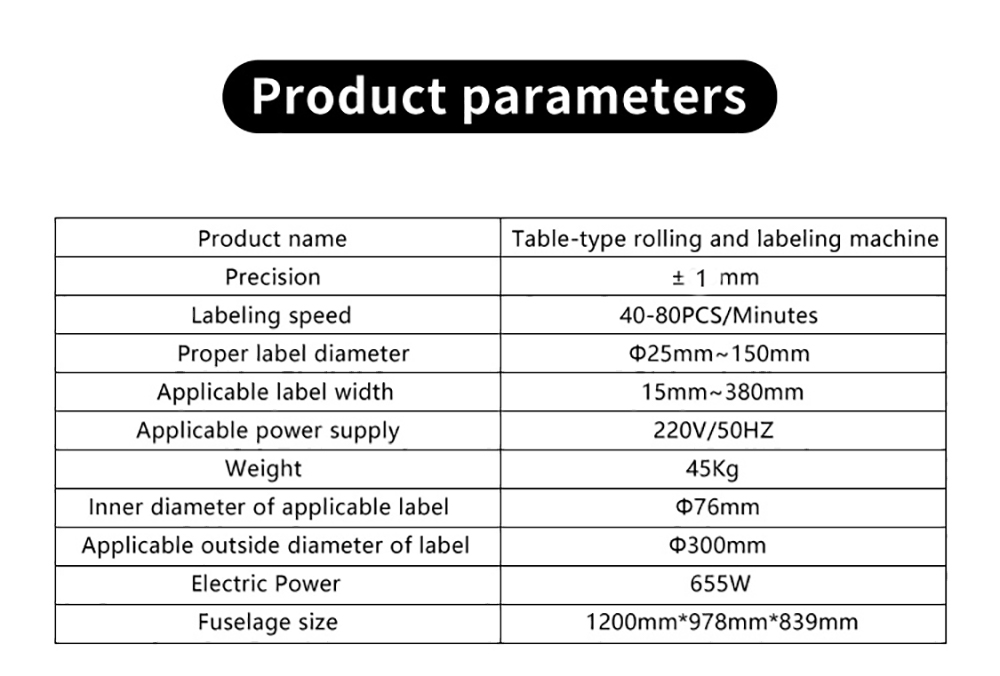

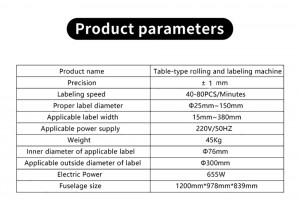

Technical Parameters:
| Parameter | Date |
| Label Specification | Adhesive sticker,transparent or opaque |
| Labeling Tolerance(mm) | ±0.5 |
| Capacity(pcs/min) | 30~ 80 |
| Suit product size(mm) | L:25~380; W(H):20 ~ 130; Can be customized |
| Suit label size(mm) | L:20 ~ 380; W(H):20 ~ 130 |
| Machine Size(L*W*H)(mm) | ≈1260*970*890 |
| Pack Size(L*W*H)(mm) | ≈1280*1000*920 |
| Voltage | 220V/50(60)HZ;Can be customized |
| Power(W) | 120 |
| N.W(KG) | ≈100 |
| G.W(KG) | ≈130 |
| Label Roll(mm) | ID:≥76; OD:≤260 |
Label Production Requirements
1. Label roll: The gap between the label and the label is 2-3mm;
2. The distance between the label and the edge of the bottom paper is 2mm;
3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);
4. The inner diameter of the core is 76mm, and the outer diameter is less than 300mm, arranged in a single row.
The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!
Features:
1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.
2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.
3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.
4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

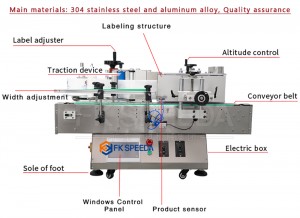

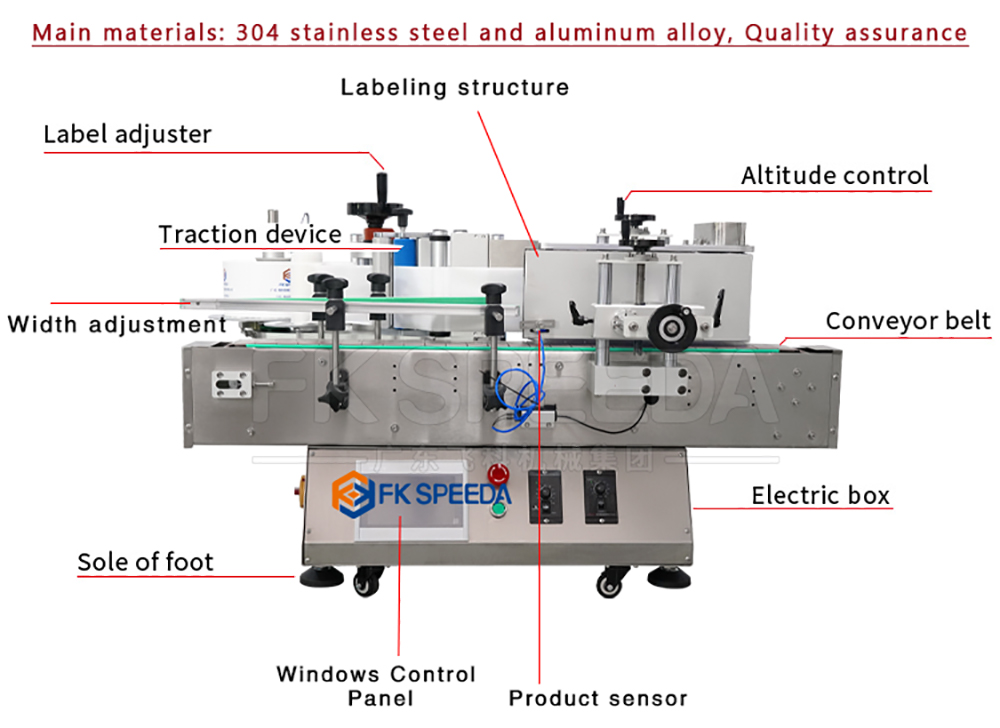

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
6) Equip with a voltage transformerto adapt to local voltage.
FAQ
Q: Are you the factory?
A: We are Manufacturer located in Dongguan,China.Specialized in labeling machine and packaging industry for more than 10 years,have thousands of customer cases,welcome for factory inspection.
Q:How to make sure your labeling quality is good?
A:We are using strong and durable mechanical frame and premium electronic parts such as Panasonic,Datasensor,SICK...to make sure stable labeling performance.What’s more,our labelers approved CE and ISO 9001 certification and have patent certificates.Besides,Fineco was awarded Chinese“New High-Tech Enterprise” in 2017.
Q:How many machines your factory have?
A:We produce standard and custom-made adhesive labeling machine.By automation grade,there are semi automatic labelers and automatic labeler;By product shape,there are round products labelers,square products labelers,irregular products labelers,and so on.Show us your product, labeling solution will be provided accordingly.
Q:What’s your quality assurance terms?
Fineco strictly implement responsibility of the post,
1)When you confirm order,the design department will send the final design for your confirmation before production.
2)The designer will follow the processing department to ensure each mechanical parts are processed correctly and timely.
3)After all parts done,designer transfer responsibility to the Assembly Dept,which need to assemble the equipment on time.
4)Responsibility transferred to Adjustment Dept with the assembled machine.Sales will check the progress and feedback to customer.
5)After customer’s video checking/factory inspection,sales will arrange the delivery.
6)If customer have problem during application,Sales will ask the After-sales Dept to solve it together.
Q:Confidentiality Principle
A:We will keep All Our Clients’ Design,Logo,and Sample on our archives,and never show to the similar clients.
Q: Is there any installation direction after we received the machine?
A: Generally you can apply the labeler directly once receive it,because we have adjust it well with your sample or similar products.Besides,instruction manual and videos will be provided.
Q: What label material does your machine use ?
A: Self-adhesive sticker.
Q: Which kind of machine can meet my labeling requirement?
A:Pls supply your products and label size (picture of labeled samples is rather helpful), then suitable labeling solution will be suggested accordingly.
Q:Is there any insurance to guarantee that I will get the right machine I pay for?
A:We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
Q:How could I get the spares of machines?
A:Non-artificial damaged spares will be sent freely and shipping free during 1 year’s warranty.
